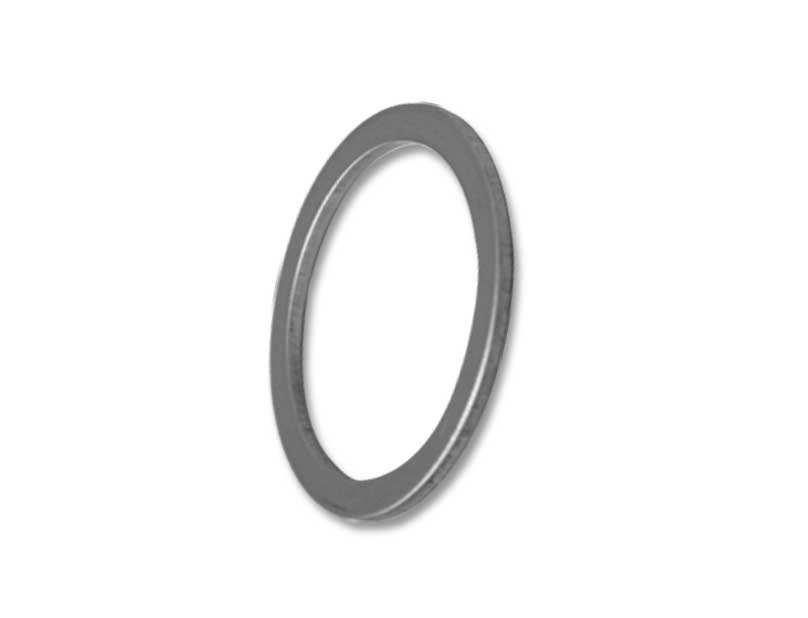

Silver plated OFHC Copper gasket
China Quality Silver pladed OFHC copper gasket, you can buy from us Silver plated OFHC Copper gasket with cheap price and quick delivery
Silver plated OFHC copper gaslets fit CF flange size of CF16 ~ CF250. Vacuum fittings use a knife-edge cf flange to achieve the high vacuum
seal gasket and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. CF flange copper gaskets are used for
ultra-high vacuum applications. Vacuum fittings are made of High purity, electronic grade oxygen-free copper gasket.
|
Type |
A |
B |
Oxygen-free Copper |
|
|
Order no. |
weight /kg |
|||
|
16 |
21.3 |
16.2 |
7355 |
0.01 |
|
25 |
35 |
25.6 |
7356 |
0.01 |
|
35 |
48.1 |
36.8 |
7357 |
0.02 |
|
50 |
61.6 |
52 |
7358 |
0.02 |
|
63 |
82.4 |
63.6 |
7359 |
0.05 |
|
80 |
99 |
82 |
7360 |
0.07 |
|
100 |
120.5 |
102 |
7361 |
0.07 |
|
150 |
171.3 |
152.5 |
7362 |
0.1 |
|
200 |
222.1 |
203 |
7363 |
0.14 |
|
250 |
273.1 |
254 |
7364 |
0.2 |
Standard size: CF16, CF25, CF35,CF50, CF63, CF80, CF100, CF150, CF200, CF250.
We also manufacture the non-standard copper gasket seals upon your requirement.
