Lens Ring Joint Gasket
Good quality Lens Ring Joint Gasket made by Chinese lead company Kaxite. Lens Ring Joint Gasket you can get with best price from us.
-
Double Jacket Gasket
Good quality Double Jacket Gasket made by Chinese lead company Kaxite. Double Jacket Gasket you can get with best price from us.
-
Stamping Jacket Gasket
Good quality Stamping Jacket Gasket made by Chinese lead company Kaxite. Stamping Jacket Gasket you can get with best price from us.
-
Corrugated Gaskets
Good quality Corrugated Gaskets made by Chinese lead company Kaxite. Corrugated Gaskets you can get with best price from us.
-
PTFE Envelope Gasket
Good quality PTFE Envelope Gasket made by Chinese lead company Kaxite. PTFE Envelope Gasket you can get with best price from us.

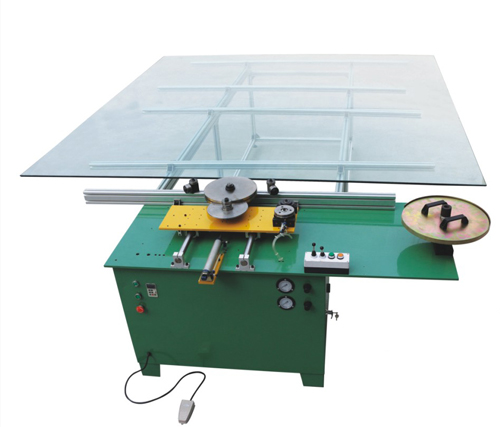

Semi-Automatic Horizontal Big Size Winder
For big size spiral wound gasket ID 300mm to 2500 or 3200mm with or without inner ring. Gasket thickness 4.5mm (also for 3.2mm, 6.4mm and 7.2mm by changing roller parts, V or W shape winding)
| Specification as following: | ||
| STYLE | KXT E2500B Manual winder | KXT E2500C Semi-automatic winder |
| Producing ability | SWG with or without IR | SWG with or without IR |
| SWG thickness | 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) | 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) |
| Maximum gasket OD | 2500mm or 3200mm | 2500mm or 3200mm |
| Minimum gasket ID | 300mm | 300mm |
| Total power | 2.2kw | 8kw |
| Spindle motor power | 0.75kw | 0.75kw |
| welder power | / | 6kw |
| Power supply | 380V/220V for option, 3 phases | 380V/220V for option, 3 phases |
| linear speed | 0-800mm/s | 0-800mm/s |
| Air compressor | 0.6—0.8 MPA | 0.6—0.8 MPA |
| Frequency Converter | 2.2G | 2.2G |
| PLC | / | xinjie |
| Machine measurement | 3400*2600*980mm | 3400*2600*980mm |
| Machine net weight | 500kg | 550kg |
