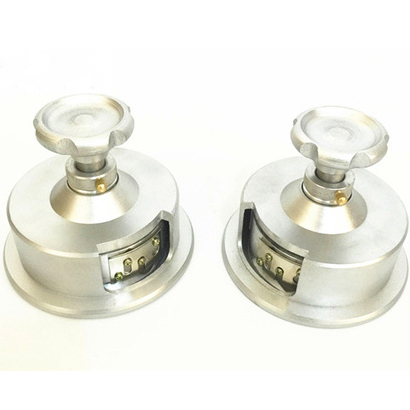

High Quality Circular Cutter

Low Price High Quality Round Cutter / Sample Cutter for Fabric

Product Specifications

A specialized instrument to determine the GSM of the textiles (Woven, Non Woven or Knitted, Fabrics) Our

Round Cutter can be used for virtuallyany type of material including Film, Foam, Carpet Paper and Board.

The unit is recommended for Yield testing i.e. determination of weight per unit area. The sample cutter cuts

out rapidly and accurately circular specimens of 100 Sq. cm. which is exactly One Hundredth of a Square

Meter, the result in grams, multiplied by 100, gives grams per square meter.

Grams Per Square METER = Specimen Weight in Grams x 100

Technical details:

Specimen area: 100 CM2

Specimen diamter: 113 MM (Approx)

Type of cut standard

Blads heavy duty (German) for long life

Rubber Pad for this application for repetetive test without fail

Procedure:

The Cutter has been specially designed to make it portable due to its light weight. Only the fabric has to grip

between cutter base and Rubber pad cutter top to be rotated gently clockwise direction for accurate

cutting of fabric. The cut fabric can be weighed and multiplied by 100 to get GSM.

Maintenace:

To maintain the efficiency of the Cutter:

a) The Blades should be turned or changed when they become damaged or blunt.

b) The Cutting Pad should also be changed, when it becomes worn out.

Note: - For best results, only approved blades and pads should be used

Accessory:

For determining the weight per area, a weighing scale having

the minimum sensitivity of 0.01 gm is required.

For this purpose, we have the following weighing scales:
1) Lab Analytical Balance : With 0.1 mg sensitivity

2) Digital Weighing Scale : With 0.01 gm sensitivity

Packing: standard export package

Shipping: by express
