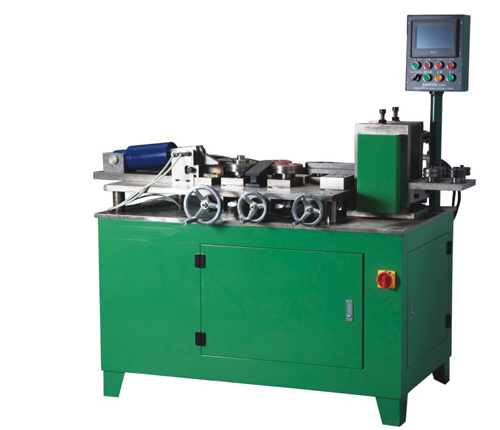

Automatic Ring Bending Machine for SWG IR and OR
Bending Ring width:6mm--60mm, ring size:200-3000mm; PLC perimeter control, automatic cutting.
Description
| Specification as following: | ||
| STYLE | KXT E2000D-2 | KXT E1000D-2 |
| Bending Ring thickness | 2mm, 3mm, 4mm | 2mm, 3mm, 4mm |
| Bending Ring width | 6mm--60mm | 6mm--20mm |
| Maximum ring OD | 3000mm | 1000mm |
| Minimum ring ID | 200mm | 120mm |
| Total power | 6kw | 6kw |
| Servo motor power | 3kw | 3kw |
| Main motor power | 2.2kw | 2.2kw |
| Power supply voltage | 380V/220V, 3phases, for option | 380V/220V, 3phases, for option |
| linear speed | 0-200mm/s | 0-200mm/s |
| PLC | xinjie | xinjie |
| Production rate | 5s/pc for ASME8"150LB | 2.5s/pc for ASME8"150LB |
| Machine measurement | 1500*1300*1580mm | 1480*1300*1600mm |
| Machine net weight | 800kg | 750kg |
